Ortofon - 2M Red

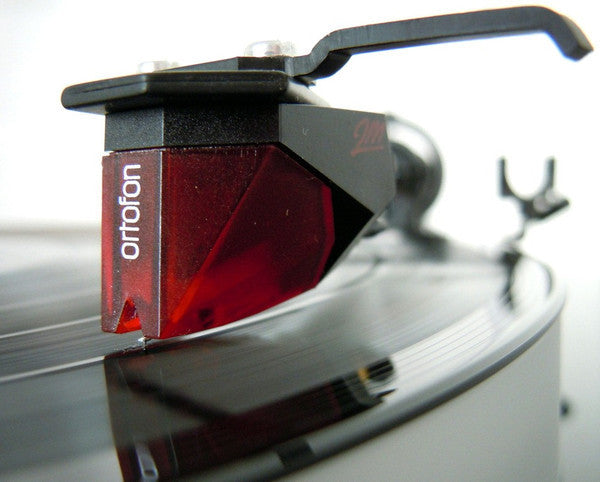

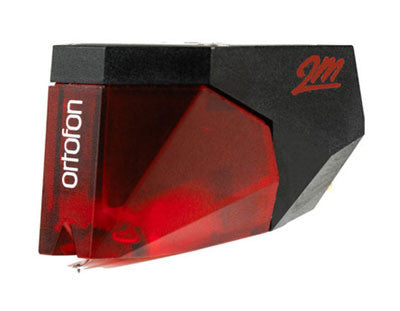

NEW ORTOFON PICK-UP 2M RED.

• Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
• Channel balance at 1 kHz: 1,5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at - 3dB: 20-22.000 Hz
• Frequency response: 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force: 70 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1,6-2,0g (16-20 mN)
• Tracking force, recommended: 1,8 g (18 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1,3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF

• Cartridge colour, body/stylus: Black/Red
• Cartridge weight: 7,2 g
• Replacement stylus unit: 2M Red (interchangeable with 2M Blue)
