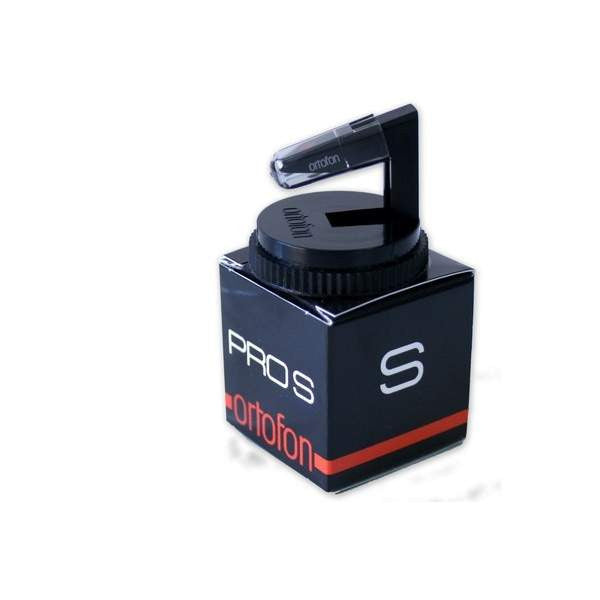

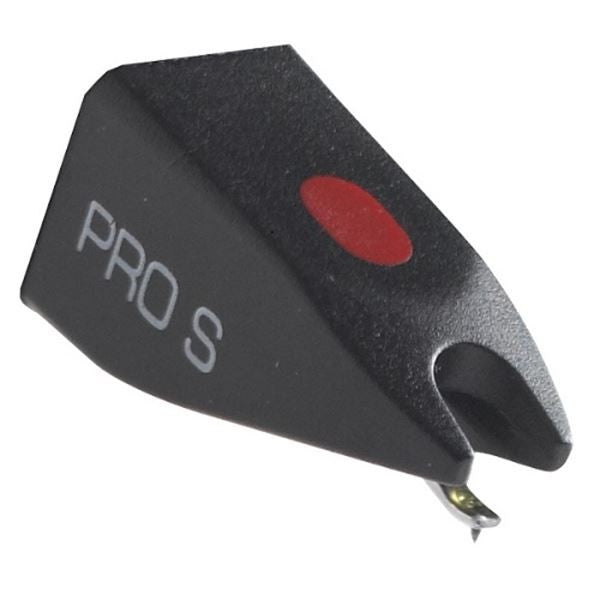

Ortofon - Stylus Pro S

NEW ORTOFON CONCORD DJ.

Output voltage at 1000Hz, 5cm/sec. 5 mV

Channel balance at 1kHz 2 dB

Channel separation at 1kHz 20 dB

Channel separation at 15 kHz 15 dB

Frequency range at -3dB

Frequency response 20-18.000 Hz +/- 2 dB

Tracking ability at 315 Hz at recommmende tracking force 70 μm

Compliance, dynamic lateral 7 μm/m N
Stylus type Spherical
Stylus tip radius R 26 μm
Tracking force range 3,0-5,0 g (30-50 mN)
Tracking force recommended 4,0 g (40 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pF
Compatible with cartridges Pro S
