Ortofon - Digital

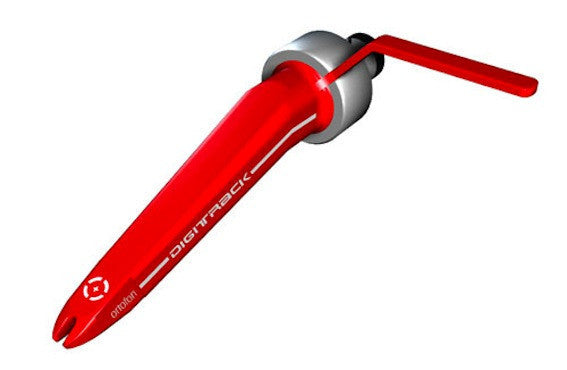

NEW ORTOFON DIGITRACK PICK-UP 2013.

849,95 dkr

Output voltage at 1000Hz, 5cm/sec.       8 mV
Channel balance at 1kHz       1,5 dB
Channel separation at 1kHz       22 dB
Channel separation at 15 kHz       15 dB
Frequency range at -3dB       20-20.000 Hz
Frequency response       20-18.000 Hz +3 dB/-2 dB
Tracking ability at 315 Hz at recommmende tracking force       90 μm
Compliance, dynamic lateral       12 μm/m N  Stylus type
Spherical  Stylus tip radius       --
Tracking force range       2,0-4,0 g (20-40 mN)
Tracking force recommended       3,0 g (30 mN)
Tracking angle       -
Internal impedance, DC resistance       -
Internal inductance       -
Recommended load resistance       -
ecommended load capacitance     -
Cartridge weight     18,5 g
